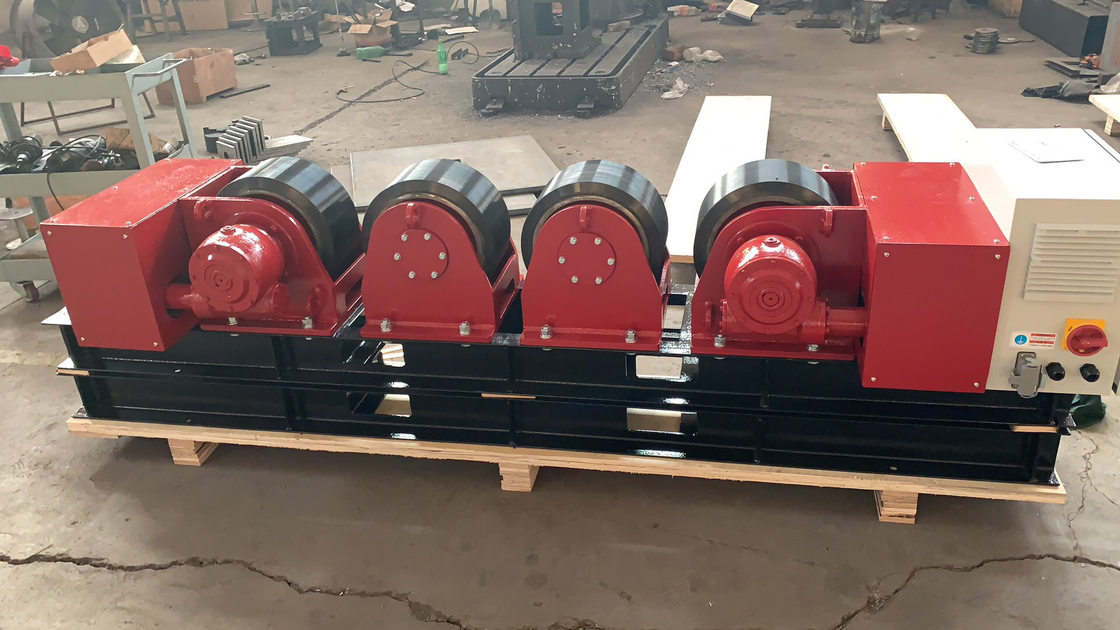

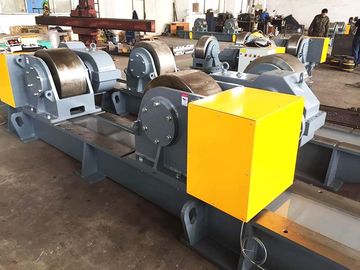

Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control

Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control
Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control

Large Image :  Bolt Adjustment 20T Pipe Welding Turning Rolls With Foot Pedal Control

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGK - 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 20 T = 44000lbs Adjust Way: Bolt Adjustment
Name: Pipe Welding Turning Rolls Roller Material: PU / Rubber / Steel
Delivery Time: 10 Days Certificates: CE
Control Way: Hand Control / Foot Pedal Control Application: Wind Tower Tank Welding
High Light:

pipe welding rollers

,

pipe turning rollers

Bolt Adjustment Welding Rotator , 20T Pipe Tank Turning Rolls With Foot Pedal Control,After Sales Service Available



After sales service

1. Overseas agent: Available (European / Middle East / America market etc.)

2. Original equipments: Our Factory / Wuxi China / Wuxi Success Machinery Equipment Co., LTD

3. Certificate: CE / CO / Form E /PL and IVO etc. customs documents are all available.



One Set Supply Range

1. One unit powered and one unit idler means ONE SET.

2. Voltage: As per required / 220V 60Hz / 380V 50/60Hz / 480V 60Hz etc..

3. Control system: Hand control box / Foot Pedal control are all available.

4. Rollers material: All with PU rotation wheels. Much better than Rubber wheels.

5. Welding rotator produced by Wuxi Success Machinery Equipment Co., Ltd



Attention please

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.

2. If your work piece material is Nonferrous Metals , we suggest PU rollers , more soft .

3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.

4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.



Specification

Model

HGK - 5

HGK - 10

HGK - 20

HGK - 30

HGK - 40

Max Capacity

5 T

10 T

20 T

30 T

40 T

Roller Diameter (mm)

 250

 300

 350

 350

 400

Roller Width (mm)

 140

 170

180

180

200

Working Range (mm)

250-2800

300-3200

500-4500

500-4500

500-4800

Roller Speed (mm/min)

1 - 1000

Motor Power (kw)

2 * 0.37

2 * 0.55

2 * 1.1

2 * 1.5

2 * 1.5

Option :

□ Bolt Adjustment             □ Lead Screw Adjustment





Other information
1. Self aligning tank turning roll is also available.
2. The roller is mainly used for welding & assembling of pressure vessel.
3. Shot blasting used, painting used tank turning roll is also available.
4. It also can assembly and weld together with other tooling for the cone inequality diameter rotary.

5. Fit up rotators is to ensure the butt welding well for auto welding. Available.



Details parts brand

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system

5. All equipments with CE certificates.



Transportation

1. Seaway is the most common transportation way for oversea trading.

2. Depends on your location, combined transport by rail and sea is also an option.

3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4. All package in wooden case for delivery to avoid damage.



Warranty

1. We provide 12month guaranty period for the whole machine quality.

2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.

3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.

4. Engineer service on user premises is also available for necessary.



Installation

1. Normally the rotators shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
