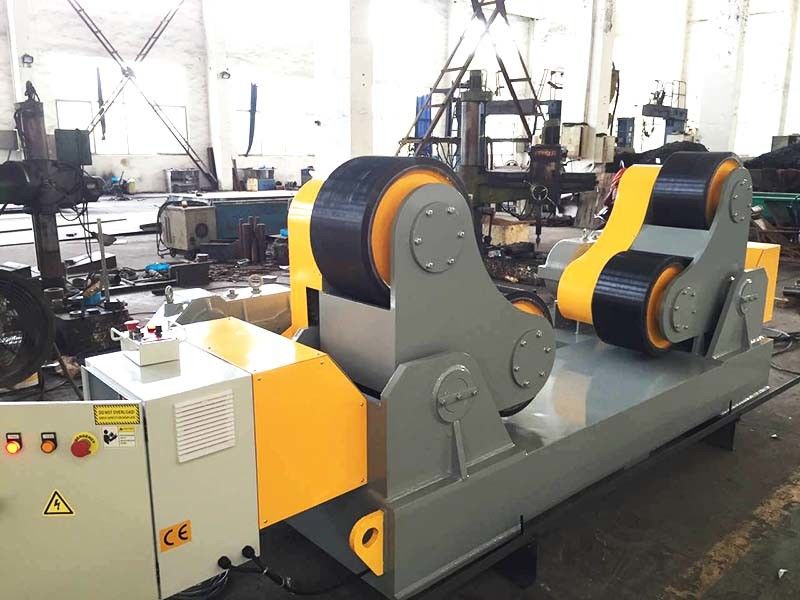

Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control

Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control
Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control

Large Image :  Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 20
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 sets per month
Detailed Product Description
Max Capacity: Drive-10T / Idler-10T Tank Diameter: 500 - 3500 Mm
Speed Control: VFD / 100~1000mm/min Adjust Way: Self Aligning
Packing Way: Wooden Case Speed Shown: Digital Readout
Name: Pipe Welding Rotator Application: Oil Gas Tank
High Light:

pipe turning rolls

,

pipe stand roller

Self Aligning Pipe Welding Rotator With Hand Box And Foot Pedal Control,20T Pipe Welding Rotator More products pics.pdf



1. Including : One set drive / One set idler / Electric control system

2. Voltage : 220V ~ 600V all available.

3. Control Way : Remote Control Box / Foot Pedal

4. Warranty: One Year by Wuxi Success Machinery Equipment Co., Ltd

5. Package Way : Wooden Case



Description of self aligning pipe welding rotator



1. It will adjust the tank diameters automatically.

2. Wireless control is more convenient than remote control cable.

3. Working range can be designed according to your tank diameter.

4. Low noise transmission and stable turning roller during working.



20T Pipe Welding Rotator  / Pipe Turning Rolls Technical Data



Model No.

Max loading

Motor power

Linear guide

Roller material

Working

Range

HGZ-20

20T

1.5 KW

6-60m/h

Rubber

320-3500mm



Note: The lubricating oil isn't oiled into the machine at shipping, the users must oil assigned lubricating oil, and then begin to use. Capacity from 5T ~ 1000T.



Pipe Welding Rotator Applications


1. The drive roller and idle roller must be put the foundation in same horizon.

2. Two sets roller must be parallel to put, the ground horizontal plane must even.
3. The worm wheel decelerator of the machine adopts lubricating oil, other gears and bearings adopt grease lubrication, periodic change.



Pipe Welding Rotator Details Control system and Brand



1. Inverter is from Taida/Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider



Attention please



1. When finished installation, check whether tight firmware of each port loosens to move the phenomenon or not, if have, please tighten them immediately.
2. Before the usage check the machine and  clear some bar the on board ,the rubber roller can not get in touch with oil, and keep off the heat possibly.These will prevent gum the gum roller to aging.

3. We will supply you all the detail work manul for your reference.



Grey Digital Readout Self Aligning Welding Rotator With Hand Box / Foot Pedal Control 0
