Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 10
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 10 Days
Payment Terms: T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Working Way: |
Self Aligning For Different Diameters Pipe |
Tank Diameter: |
3500mm / Larger Available |
Name: |
Pipe Welding Rotator |
Turning Direction: |
Foot Pedal / Hand Box |
Max Capacity: |
20 Tonne |
Product: |
Pipe Welding Rollers |
Overseas Service: |
Available |
Speed Control: |
Variable Frequency Drive |
Application: |
Pressure Vessels |
OEM Service: |
Available |
Working Way: |
Self Aligning For Different Diameters Pipe |
Tank Diameter: |
3500mm / Larger Available |
Name: |
Pipe Welding Rotator |
Turning Direction: |
Foot Pedal / Hand Box |
Max Capacity: |
20 Tonne |
Product: |
Pipe Welding Rollers |
Overseas Service: |
Available |
Speed Control: |
Variable Frequency Drive |
Application: |
Pressure Vessels |
OEM Service: |
Available |

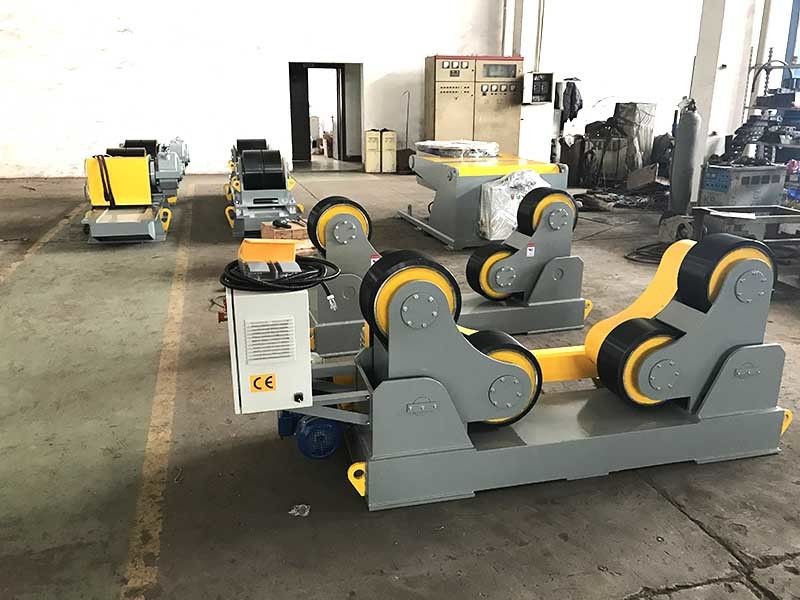

1.5kw Motor Self Aligning Automatic Pipe Welding Rollers For Pressure Vessels, Wind Tower, Oil Tank, Pipeline
Self Aligning Automatic Pipe Welding Rollers Description
1. Consist : One powered roller , One idler roller , Electric control system
2. Adjust way : Adjust the pipe diameter automatically with diameter 12 - 110 inches
3. Voltage : As your voltage required.
4. Control Way : Remote hand control box with Speed Digital Readout.
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals ) all available.
6. Original : Our factory / Wuxi China / Wuxi Success Machinery Equipment Co., Ltd
Note: Either emergency stop button can be used to stop the machine but operation can only restart again once the reset button is pressed.
Pipe Welding Rollers Specification For Standard Workpieces
|
Model |
HGZ-5 |
HGZ-10 |
HGZ-20 |
HGZ-30 |
HGZ-40 |
|
Max Capacity |
5 T |
10 T |
20 T |
30 T |
40 T |
|
Roller Diameter (mm) |
250 |
300 |
350 |
350 |
400 |
|
Roller Width (mm) |
100 |
120 |
|||
|
Working Range (mm) |
250-2300 |
320-2800 |
500-3500 |
530-3700 |
600-4200 |
|
Roller Speed (m/h) |
6-60 |
||||
|
Motor Power (kw) |
0.75 |
1.1 |
1.5 |
2.2 |
3 |
|
Option : |
□ Moving wheels □ Wireless Control □ Remote Control |
||||
Applications
1. Pipe welding rollers with moving wheels will be more convenient for several single pipes butting welding.
2. self aligning pipe welding rollers will be more convenient for inside / outside seam welding using together with our column boom.
3. We also supply the welding manipulator and flux recovery machine.
4. About 20 years professional experience engineer will supply you the service.
Details Control System and Brand On Pipe Welding Rollers
1. Inverter is from DANFOSS Brand
2. Motor is from CE INVERTEK Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from SCHNEIDER.
