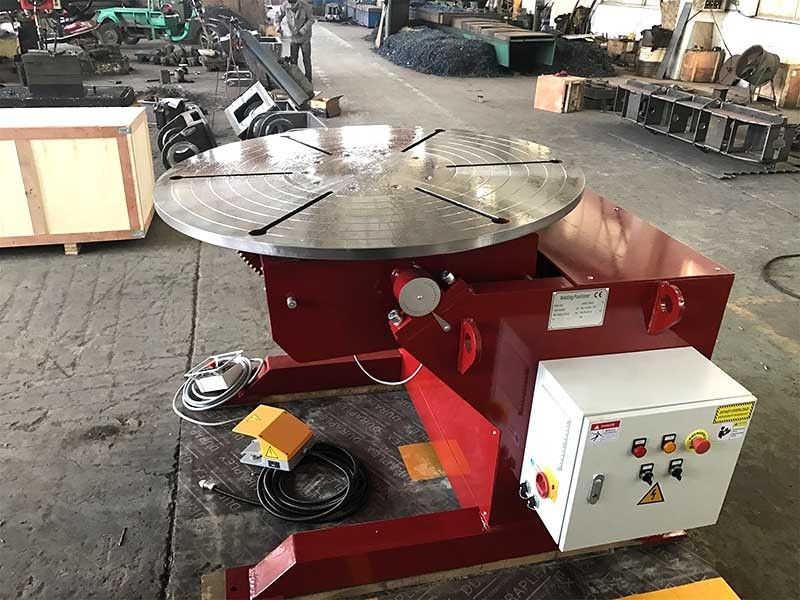

Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box

Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box
Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box

Large Image :  Welding Rotating Table 1000kg Welding Positioners Remote Hand Control Box

Product Details:

Place of Origin: Wuxi-China
Brand Name: Weldsuccess
Certification: CE / ISO
Model Number: HBJ-10

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: 3000-5000 USD / SET
Packaging Details: Wooden case
Delivery Time: 20 Days
Payment Terms: 20%~30% down payment, T/T, L/C
Supply Ability: 5 Sets per month
Detailed Product Description
Products: Welding Positioners Other Name: Welding Turn Table
Control Way: Remote Hand Control Box Warranty: One Year
Tilting Angle: 0~90 Rotation Speed: Variable
Load Capacity: 1000kg Application: Joint Column And Boom
High Light:

rotating display table

,

welding rotating table

Top Quality 1 Tonne Welding Positioners With Bottom Prices at Stock

More info.pdf



Wuxi success machinery equipment co., ltd supply the welding positioners. It provides the quickest means of both rotating and tilting through 360 degrees while allowing maximun access to the workpieces.



1 Ton Welding Turn Table Features

1. Variable speed table rotation in digital readout at hand control box.

2. Round or square T-slotted tables with extension arms available.

3. Motorized table tilting.

4. Foot pedal control.

5. One year warranty.



Details specification

Model HBJ-03 HBJ-06 HBJ-10 HBJ-30 HBJ-50
Max Capacity 300 kg 600 kg 1 T 3 T 5 T
Table Diameter (mm) 600 1000 1200 1400 1500
Rotation Power (kw) 0.37 0.75 1.1 1.5 3
Rotation Speed (rpm) 0.1-1 0.09-0.9 0.05-0.5
Tilting Power (kw) / 0.75 1.5 2.2 3
Tilting Angle (°) 0-90 0-90 0-90 0-90 0-90
Tilting Speed (kw) Manual 1.1 0.67 0.23 0.14
Option: □ Foot Pedal □ Wireless Control □ Tilting Angle 120°























Noted: If have any questions,please send us email for discussion with our experienced engineers. They will help you understand which welding positioners is the best suit your workpiece and work out the most cost effective solution.



Advantages to use welding positioners

Wuxi success machinery equipment co ltd design the welding positioners to give the maximum positioning flexibility by using the tilting and rotation of the tale to manipulate the work piece into the correct "down hand" positioner for welding or to position accurately for assembly and manufacturing equipments.



Other Type Welding Turn Table Positioners

1. L shape welding positioner.

2. Head & tail stock welding positioner.

3. Two column welding positioners.

4. Hydraulic or manual lift welding positioners.



Training & Installation

1. Normally it do not require pre-install documentation. Wuxi success team will try our best to ship the machines integrally which are ready to power up and to use.

2. If clients require on-site support, our engineers are ready to go.

3.Full installed before delivery and package in one woodencase.
