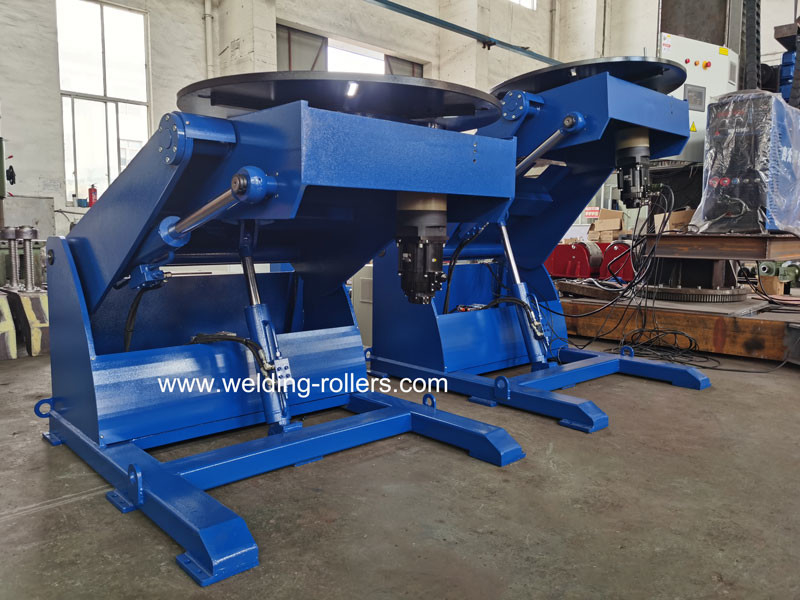

5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter

5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO/CE/CO

Model Number: HBJ-50

Payment & Shipping Terms

Minimum Order Quantity: 1 set

Price: Negotiation

Packaging Details: Wooden Case

Delivery Time: 20 working days after received your payment

Payment Terms: L/C, D/P, T/T

Supply Ability: 5 Sets Per Month

Get Best Price

Product Details

Product Description
Highlight:

Pipe Hydraulic Welding Positioner

,

3 Axis Pipe Welding Positioner

,

5 Ton Pipe Welding Positioner

Max Capacity:
5000kg
Table Diameter:
1500mm
Type:
Automatic Positioner
Product Name:
Pipe Welding Positioners
Clamps Way:
Welding Chuck / Design
Certificate:
CE Approval
Dimensions:
Customizable
Warranty:
1 Year
Max Capacity:
5000kg
Table Diameter:
1500mm
Type:
Automatic Positioner
Product Name:
Pipe Welding Positioners
Clamps Way:
Welding Chuck / Design
Certificate:
CE Approval
Dimensions:
Customizable
Warranty:
1 Year
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter

Product Description:

1. The worktable could be rotating ( in 360° ) or tilting (in 0 - 90° ) allowing work piece to be welded at the best position.
2. Variable Frequency control (VFD) speed by rotating and motor-driven speed regulation by tilting from which customers can choose in line with operational requirements.
3. Electric control system composed of electric cabinet and manual control panel, easy to operate.
4. Worktable is manufactured with six M30T bolt grooves used to clamp and position the work pieces.
5. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.


Features:

1. Pipe welding positioners are easy to control with electric cabinet and hand control panel.
2. Slewing bearing will ensure turning and over turning smoothly.
3. Several concentric grooves are processed onto the surface of the worktable to help position the work piece at the center.
5 Ton Pipe Hydraulic Welding Positioner 3 Axis With 1500mm Table Diameter 0
Technical Parameters:
Model

HBJ-50

Loading Capacity

5000kg maximum

Table diameter

 1500mm
Rotation motor 1.5Kw
Rotation speed 0.05-0.5rpm

Tilting motor

2.2kw

Tilting speed

0.14rpm

Tilting angle

0~90°
Max.Eccentric distance 200mm

Max.Gravity distance

300mm

Voltage

380V ±10% 50Hz 3Phase
Control system

Remote control 8m cable

Color

Customized

Warranty

 1 Year


Applications:

1. Pipe welding positioners are used for diverse applications ranging from pipe spooling to positioning of very large cumbersome parts such as chassis components or structural steel.
2. Welding positioners greatly enhance productivity when welding pipe, shafts, wheels, elbows and other fittings.
3. Along with welding turntables, pipe turning positioners are particularly useful when rotating or positioning workpieces with large offset loads.
4. We design and manufacture custom pipe welding positioners and welding rotating tables that suit a variety of pipe handling applications.



Support and Services:

1. We provide 12month guaranty period for the whole machine quality.
2. During the warranty time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.


Packing and Shipping:

1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
4.All Package in wooden case for delivery to avoid damage.
5.It will be placed in an anti-rust coating for extra protection and then covered with a thick foam sheet.
6.The crate will be sealed with screws and nails to ensure that it is secure and will not be damaged in transit.


  FAQ:
Q1: What is the Brand Name of this product? A1: The Brand Name of this product is Weldsuccess.
Q2: Where is the Place of Origin of this product? A2: The Place of Origin of this product is China.
Q3: What is the Certification of this product? A3: The Certification of this product is ISO/CE/CO.
Q4: What is the Minimum Order Quantity of this product? A4: The Minimum Order Quantity of this product is 1 set.
Q5: How long is the Delivery Time of this product? A5: The Delivery Time of this product is 20 working days after received your payment.
