5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control

China 5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control supplier
5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control supplier 5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control supplier 5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control supplier 5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control supplier

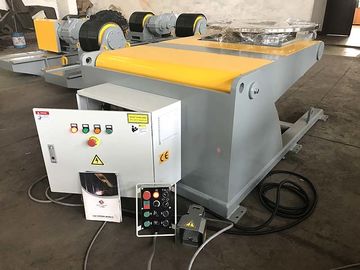

Large Image :  5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control

Product Details:

Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: YHB - 50

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 20 working days after received your payment
Payment Terms: TT / 30 % payment in advance, L/C, Western Union
Supply Ability: 5 Sets Per Month
Contact Now
Detailed Product Description
Max Capacity: 5000kg Product: Welding Positioner
Table Diameter: 1200 Mm / Design Lifting Way: Hydrulic Lifting / Elevating
Type: Welding Turn Table Control Way: Remote Hand Control
Rotation Speed: 0.05-0.5 Rpm Tilting Angle: -45~135
Certificate: CE

5T Hydraulic Elevating Welding Positioner , To European Market Supported After Sales Service



OVERSEAS AGENT

1. Overseas agent: Available (European / Middle East / America market etc.)

2. Original equipments: Our Factory / Wuxi China / Wuxi Success Machinery Equipment Co., LTD

3. Certificate: CE / CO / Form E /PL and IVO etc. customs documents are all available.

4. European standard work manual is available as well.

5. To European market 380V 50Hz / We also did 240V / 480V etc..5T Hydraulic Elevating Welding Rotating Display Table With Remote Hand Control



Detail Parameters

Model YHB-10 YHB-30 YHB-50
Max load capacity 1000 kg 3000kg 5000 kg
Table diameter 900 1000 1200
Rotation speed 0.1-1 rpm 0.05-0.5 rpm
Tilting angle -45~130°


CHARACTERISTICS

1. Hydraulic elevating (pressure >20 MPa) almost every available working height is possible
2. Heavy duty table (with and without bore) with nearly no backlash
3. Top-class electronic components from Schneider /Siemens
4. European made high quality hydraulic components Steplessly adjustable speed
5. The strong and durable construction creates a very high stability
6. CE marking
7. The favourable price-performance ratio yields to a quick payback of your investment
8. The standard configuration includes a remote control which is equipped with a digital readout and a foot pedal (Left/Right)


AVAILABLE ON REQUEST
1. Foot pedal for adjustable speed
2.  Radio remote control


Note:
1. Please advise the lifting height you want , then we will send you the detail proposal for confirmation.
2. For the longer and more offset from gravity center workpiece, large model should be chosen.
3. We would be pleasure to make solution for you if your work piece is not normal shape.
4. Head and tail stock , lifting model , 360° tilting are all available.

Detail Parts Brand
1. ABB / INVERTEK brand motor
2. Schneider / Siemens electric system
3. SKF / NTN brand bearing
4. USA DANFOSS / YASKAWA inverter

5. All CE certificates supported brand



Competitive Advantage

1. It’s easy to control with electric cabinet and hand control panel.

2. Slewing bearing will ensure turning and over turning smoothly.

3. Several concentric grooves are processed onto the surface of the worktable to help position the work

piece at the center.



Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Special tilting platform is available.



Delivery and after sale service

1. One / Two sets we will package in wooden case.

2. If order quantity is enough for one container, we will package in container directly.

3. We have engineers supply you the door to door installation service.

4. All the installation drawings and work manual document will send to you via Email.

5. We are the factory, so we can supply you all the technology problems helps.



JUST SEND EMAIL FOR MORE DETAILS NOW.
