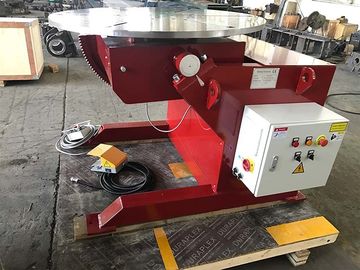

Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box

Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box
Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box

Large Image :  Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box

Product Details:
Place of Origin: CHINA
Brand Name: Weldsuccess
Certification: ISO/CE/CO
Model Number: HBJ-30
Payment & Shipping Terms:
Minimum Order Quantity: 1 SETS
Price: Negotiation
Packaging Details: wodden package
Delivery Time: 25days
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5Sets per month
Detailed Product Description
Load Capacity: 3T Application: Tilting And Rotary Welding
Tilting Angle: 0 - 90 ° / 120° Table Diameter: 1400mm
Rotation Speed: 0.05-0.5 Rpm Rotary Way: Electric Control
Rotation Power: 1.5KW Titling Power: 2.2KW
Name: Pipe Welding Positioners Feature: Speed Digital Readout
High Light:

tube welding positioner

,

welding rotators positioners

rotary and titling piping welding positioner,foot pedal control and speed digital readout via hand box

WELDSUCCESS PRODUCTS.pdf



Pipe Welding Positioners Description
1. This machine is used to easy welding, can mach with welding machine, welding manipulator etc.
2. This type pipe welding positioners can tilting from 0 to 120°, rotating 360° by VFD.
3. Voltage standard is 380V-3PH-50HZ, but we can make 110-575V as per your requirement
4. This machine is controled by remote-control box, optional: wireless remote control, foot pedal control
5. Other more special requiements pease contact us



Pipe Welding Positioners Specifications

  Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box 0

Model HBJ-03 HBJ-06 HBJ-12 HBJ-30 HBJ-50
Max Capacity 300 kg 600 kg 1.2 T 3 T 5 T
Table Diameter (mm) 600 1000 1200 1400 1500
Rotation Power (kw) 0.37 0.75 1.1 1.5 3
Rotation Speed (rpm) 0.1-1 0.09-0.9 0.05-0.5
Tilting Power (kw) / 0.75 1.5 2.2 3
Tilting Angle (°) 0-90 0-90 0-90 0-90 0-90
Tilting Speed (kw) Manual 1.1 0.67 0.23 0.14
Option: □ Foot Pedal □ Wireless Control □ Tilting Angle 120°






















Pipe Welding Positioners Spare Parts Brand

1.Inverter is from Danfoss

2.Motor is from Invertek

3.Reducer is from China brand

4.Electric system is from Schneider



Pipe Welding Positioners Competitive Advantage

1. With professional anti-electromagnet funtion.
2. Have self-locking function.
3. Giving you the competitive price.
4. Tilting from 0 to 120°, rotating 360°.
5. Provide you the excellent service.
6. Supply you the reliable products.



Other details
1. This type pipe welding positioners worktable is tilted by motor, accurate and reliable positioning.
2. Pipe welding positioners makes the workpiece in perfect position for welding.

3. It proves welding quality and lessens welding labor and improves productivity.

4. The worktable adopts AC frenquency conversion speed, large range and variable speed and high precision and weld at need position.


Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. We also have Hydrulic lifting pipe welding positioners, welding turntable for reference.



Certificate and Company Work Shop

1. All our pipe welding positioners have passed CE test and get the CE certificates. So it's ok to export the European.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. If want door to door installation service, just send us email.



Rotary And Titling Piping Welding Positioner Speed Digital Readout Via Hand Box 1
