Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding

Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding
Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding

Large Image :  Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBJ-12
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance, L/C
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 2600 Lbs Application: Pipe Turning Welding
Tilting Angle: 0 - 90 ° Table Diameter: 1200 Mm
Working Way: Together With Support Roller Package: Wooden Case
Name: Pipe Welding Positioners
High Light:

tube welding positioner

,

welding rotators positioners

 Automatic Welding / Cutting Weld Plus Pipe Welding Positioners For Pipe Turning Welding



Pipe Welding Positioners Description

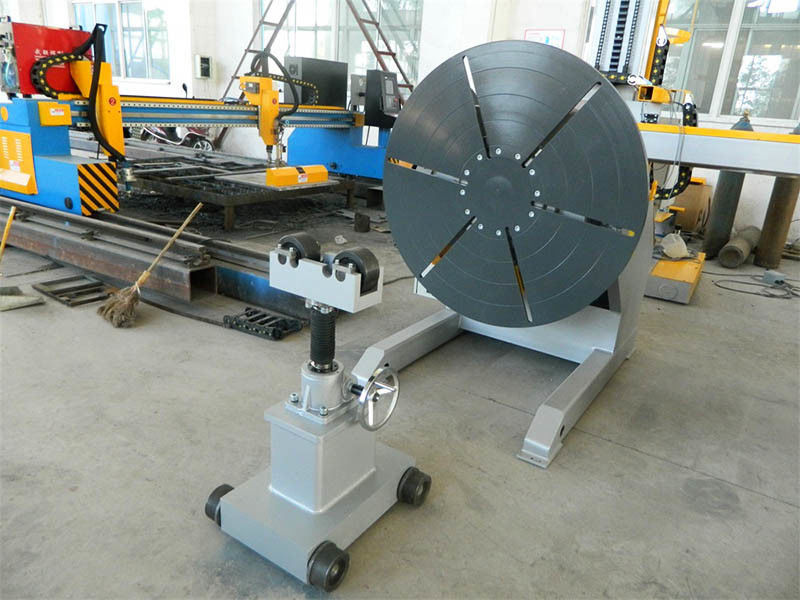

1. Working with support rollers together for pipe turning and welding / cutting automaticly.

2. Pipe welding positioners is mainly composed of worktable rotating and tilting unit and electric control system .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best
welding speed .
4. Voltage is 380V 50Hz 3P , or according to your request resetting.


Pipe Welding Positioners Detail Parameters

Model

HBJ-03

HBJ-06

HBJ-12

HBJ-30

HBJ-50

Max Capacity

300 kg

600 kg

1.2 T

3 T

5 T

Table Diameter (mm)

600

1000

1200

1400

1500

Rotation Power (kw)

0.37

0.75

1.1

1.5

3

Rotation Speed (rpm)

0.1-1

0.09-0.9

0.05-0.5

Tilting Power (kw)

/

0.75

1.5

2.2

3

Tilting Angle (°)

0-90

0-90

0-90

0-90

0-90

Tilting Speed (kw)

Manual

1.1

0.67

0.23

0.14

Option:

□ Foot Pedal           □ Wireless Control         □ Tilting Angle 120°


Marks
1. If your work piece is pipe, please advise us the pipe diameter for the welding chuck model.
2. If your work piece is too long or height , please choose the biger model .
3. If you want the clamps for your special work piece , then please advise us the details drawings.


Competitive Advantage

1. We ( Factory ) will control every step during the production to ensure the equipments quality.

2. Fully equipments are treatment by heating and sand blasting treatment .

3. Control way is remote control with 5 m length cable or wireless control hand control box.



Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding 0



Workpiece welding way

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.



Automatic Welding / Cutting Weld Plus Positioners For Pipe Turning Welding 1



1. All our pipe welding positioners have passed CE test and get the CE certificates.

2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.

3. We can design the special equipments according to your request.

4. We provide 12month guaranty period for the whole machine quality.





JUST CONTACT US FOR DETAIL QUOTATION.
