Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBJ-20
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance, L/C
Supply Ability: 5 Sets Per Month
Max Capacity: |
2 Ton |
Application: |
Pipe Turning Welding |
Name: |
Pipe Welding Positioners |
Table Diameter: |
1200 Mm |
Working Way: |
Together With Support Roller |
Adjust Way: |
Titling And Rotary |
Control Way: |
Hand Box And Foot Pedal |
Color: |
Red |
Max Capacity: |
2 Ton |
Application: |
Pipe Turning Welding |
Name: |
Pipe Welding Positioners |
Table Diameter: |
1200 Mm |
Working Way: |
Together With Support Roller |
Adjust Way: |
Titling And Rotary |
Control Way: |
Hand Box And Foot Pedal |
Color: |
Red |

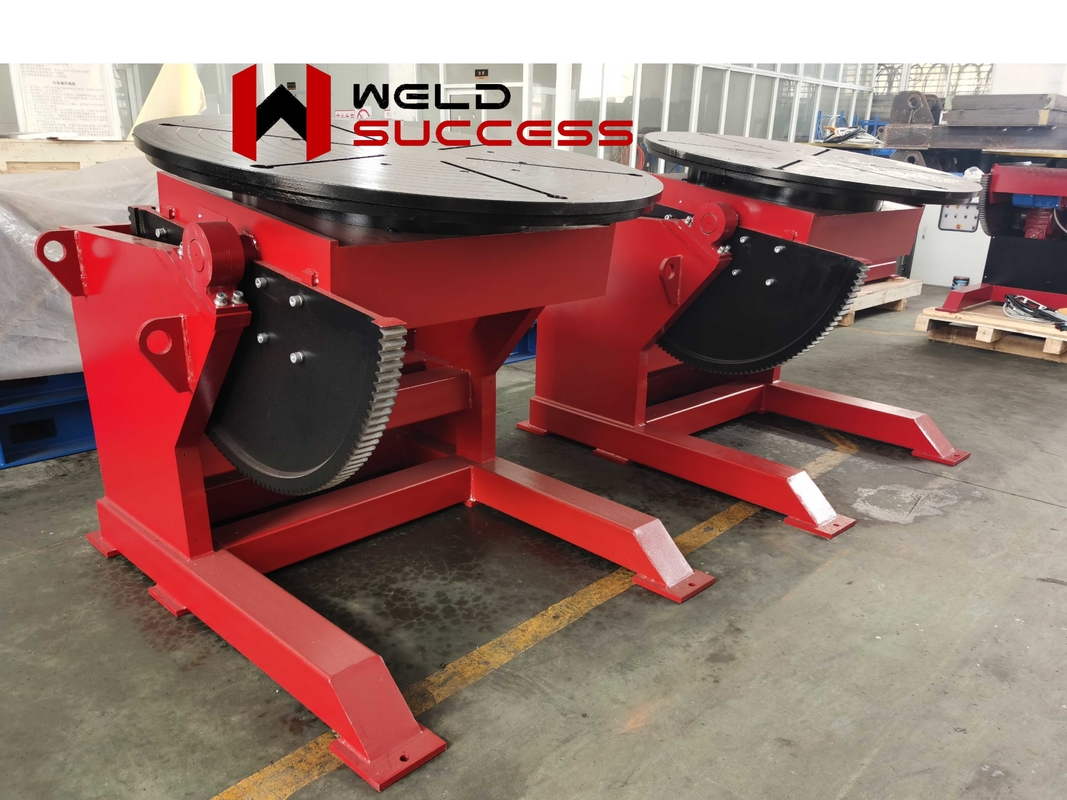

Stepless Frequency Conversion Pipe Welding Positioners With Siemens Electric Control System
Pipe Welding Positioners Description
1. Working with support rollers together for pipe turning and welding / cutting automaticly.
2. Welding positioner is mainly composed of worktable rotating and tilting unit and electric control system .
3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed .
4. Voltage is 380V 50Hz 3P , or according to your request resetting.
Some Models Pipe Welding Positioners Detail Parameters
Model |
HBJ-03 |
HBJ-06 |
HBJ-12 |
HBJ-30 |
HBJ-50 |
Max Capacity |
300 kg |
600 kg |
1.2 T |
3 T |
5 T |
Table Diameter (mm) |
600 |
1000 |
1200 |
1400 |
1500 |
Rotation Power (kw) |
0.37 |
0.75 |
1.1 |
1.5 |
3 |
Rotation Speed (rpm) |
0.1-1 |
0.09-0.9 |
0.05-0.5 |
||
Tilting Power (kw) |
/ |
0.75 |
1.5 |
2.2 |
3 |
Tilting Angle (°) |
0-90 |
0-90 |
0-90 |
0-90 |
0-90 |
Tilting Speed (kw) |
Manual |
1.1 |
0.67 |
0.23 |
0.14 |
Option: |
□ Foot Pedal □ Wireless Control □ Tilting Angle 120° |
Competitive Advantage
1. Inverter is from Taida/Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
5. We ( Factory ) will control every step during the production to ensure the equipments quality.
6. Fully pipe welding positioners equipments are treatment by heating and sand blasting treatment .
7. Control way is remote control with 5 m length cable or wireless control hand control box.
Workpiece welding way
1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.
2. Special clamps are available,but we have to design according to your work piece detail drawings.
3. Bolt fixed the work piece on the turning table then weld with the automatic welding guns.
Attention Please
1. All our pipe welding positioners have passed CE test and get the CE certificates.
2. For Middest East customers,like Sandi Arabia. We also can supply you the CO and Original Invoice.
3. We can design the special equipments according to your request.
4. We provide 12month guaranty period for the whole machine quality.
JUST CONTACT US FOR DETAIL QUOTATION.
