1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner

1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner
1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner 1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner

Large Image :  1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HBS-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Packed in wooden case / Container
Delivery Time: 15 working days after received your payment
Payment Terms: TT / 30 % payment in advance, L/C, Western Union
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 1000kg = 2200 Lbs Light Way: Hydrualic
Using Range: Pipe TurningWelding Voltage: 240V / 380V / 480V 50/60Hz
Certificate: CE / FORM E / CO Color: As Per Required
Height Adjustment: Via Bolt Package Weight: 600KG
High Light:

tube welding positioner

,

welding rotators positioners

1T Capacity Pipe Turning Positioner ,Height Adjustment Pipe Turning Positioners



Quick info/Overseas agent available

1. Delivery time : 15 days

2. Rotation angle : 0 - 360°

3. Condition : 100% new condition with CE supported.

4. Lifting stroke : Normally 900 mm / as customers' customized

5. Control Way : Hand Pendant with digital readout (Cabled) / wireless style available

6. Original place : Our Factory / Wuxi China / Wuxi Success Machinery Equipment Co., Ltd

7. Overseas agence: European / America / Middle East / South-East Asia agent all available.



Application

1. Custom Height Range or powered height adjustability.

2. Elbow Jigs and outboard roller support stands available.

3. We also supply the welding chucks. Diameter up to 1500mm.

4. Ideal for positioning of heavy wall, large diameter pipe for pipe spooling applications with large offset loads. Large height adjustability accommodates a wide range of swing diameters.



Detail Parameters

Model HBS-10 HBS-20 HBS-30 HBS-50 HBS-60
Load Capacity 1000kg 2000kg 3000kg 5000kg 6000kg
Rotation Speed 0.1~1.5 rpm 0.3~3.0 rpm 0.2~2.4 rpm 0.1~1.5rpm 0.05~1.2rpm
Height Adjust Hydrualic Adjustment
Voltage as customer require



Note:
1. Input Power Options : as per standard spec or to customer requirements

2. Custom Height Range : to customer requirement

3. Upgrade Controls : PLC touchscreens , full full integration to our welding manipulators

4. We also supply standard Gear tilt positioner , Headstock and Tailstock positioner , Hydraulic lifting positioner and only Horizontal rotation table.


Detail Parts Brand
1. ABB / INVERTEK brand motor
2. Schneider / Siemens electric system
3. SKF / NTN brand bearing
4. USA DANFOSS / YASKAWA inverter

5. All CE certificates supported brand



Competitive Advantage

1. It’s easy to control with electric cabinet and hand control panel.

2. Slewing bearing will ensure turning and over turning smoothly.

3. Several concentric grooves are processed onto the surface of the worktable to

    help position the work piece at the center.

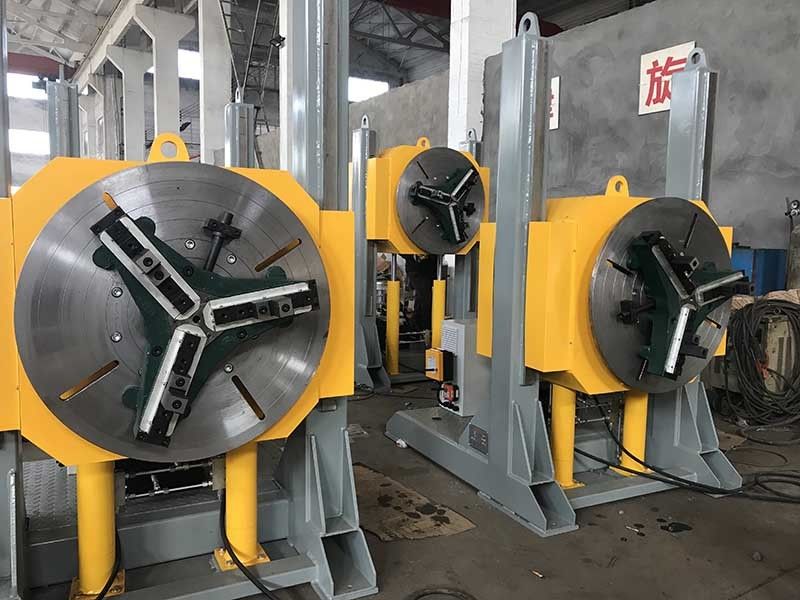

1T Capacity Welding Rotators Positioners , Manual Height Adjustment Tube Welding Positioner 0



Clamps for reference

1. We have 3 jaws or 4 jaws chucks for chosen, and pipe diameter from 50 mm to 1200 mm.

2. Special clamps are available,but we have to design according to your work piece detail drawings.

3. Special tilting platform is available.



Delivery and after sale service

1. One / Two sets we will package in wooden case.

2. If order quantity is enough for one container, we will package in container directly.

3. We have engineers supply you the door to door installation service.

4. All the installation drawings and work manual document will send to you via Email.

5. We are the factory, so we can supply you all the technology problems helps.



JUST SEND EMAIL FOR WORKING VIDEOS NOW.
