Manipulator Welding Column And Boom 3000mm Automatic Welding Machine

Product Details

Place of Origin: China

Brand Name: Weldsuccess

Certification: ISO / CE / CO

Model Number: LHC 3030

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: Negotiation

Packaging Details: Wooden case / Container

Delivery Time: 25 Days

Payment Terms: T/T, L/C, D/P, D/A

Supply Ability: 3 Sets Per Month

Get Best Price
Highlight:

Manipulator Welding Column And Boom

,

3000 mm Welding Column And Boom

,

1000mm/min Welding Column And Boom

Lifting Stroke:
3000mm
Retracting Stroke:
3000 Mm
Options:
Flux Recovery Machine
Certificate:
CE
Name:
Welding Manipulator
Turn Around:
±180°
Travelling Way:
Motorized Travelling
Type:
Welding Column And Boom
Color:
Customized
Lifting Stroke:
3000mm
Retracting Stroke:
3000 Mm
Options:
Flux Recovery Machine
Certificate:
CE
Name:
Welding Manipulator
Turn Around:
±180°
Travelling Way:
Motorized Travelling
Type:
Welding Column And Boom
Color:
Customized

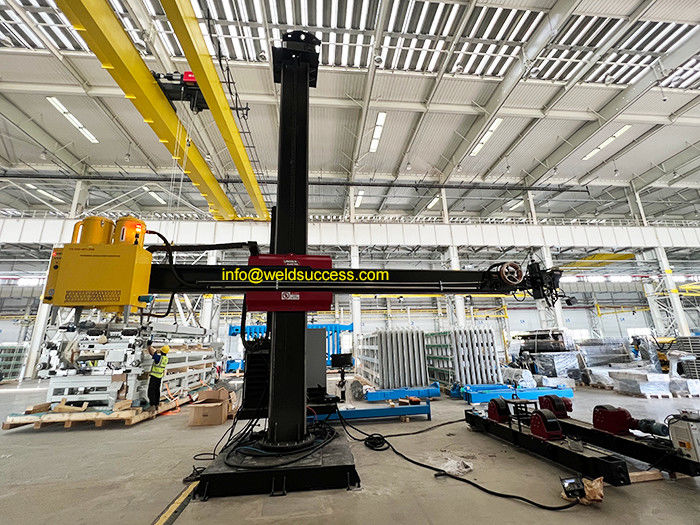

Manipulator Welding Column And Boom 3000mm Automatic Welding Machine

A welding manipulator is a piece of equipment that helps operators reach any place that needs welding operation. Its function is to provide the same lift and reach abilities of a high-skilled welder.Our single unitized welding manipulator style features provides the most efficient weld process column and boom shop mobility. Simple to ship unitized linear welding manipulator with patent pending revolutionary boom swivel design allows easy install in minutes. Perfect for pipe welding job shops that need easy relocating the automated pipe manipulator system any where in the pipe welding fab shop.

LHC3030 Welding Column And Boom Manipulator Spacification

Model LHC-3X3
Boom end max. load 200 kg
Vertical boom travel 3000 mm
Vertical boom travel speed 1000mm/min
Vertical travel motor 0.75 kw with brake
Horizontal boom travel 3000mm
Horizontal boom travel speed 120~1200mm/min
Horizontal travel motor 0.37 kw
Rotation angle ±180°
Rotation way Manual / Motorized
Traveling speed Manual / Motorized
Traveling way Manual / Motorized
Control way Remote hand control
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate

CE approval

Spare parts brand

1,Inverter is from Danfoss

2,Motor is from Invertek

3,Reducer is from China brand

4,Electric system is from Schneider

How to select the correct size of manipulator to best meet your needs

To select the correct size of Pipe Welding Manipulator, not only the Reach and Lift Ranges must be determined, but also the required load capacity. The Reach Range is selected according to the desired extreme locations of the Arc horizontally. The Lift Range is selected according to the extreme locations of the Arc vertically. A typical welding set-up is shown in the sketch.

Manipulator Welding Column And Boom 3000mm Automatic Welding Machine 0

The pipe welder power supply rotates easily on the single piece unitized manipulator column base. The column and boom has a smooth linear rail travel reach, with a ridged 500 lbs of boom weld head capacity at either end in a non wobble solid fashion. The precision welding manipulator acme screw column boom lift does not require a fall safe device like other types of weld manipulator operations.

When people look for solutions they turn to someone they can trust Our Factory.

Welding Column And Boom Advantages

1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.
