Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC-2020
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case / Package in Container Directly
Delivery Time: 25Days
Payment Terms: T/T, L/C, D/P, Western Union
Supply Ability: 3 Sets Per Month
Name: |
Welding Column And Boom |
Lifting Travel: |
2000mm |
Shrink Travel: |
2000mm |
Rotation Way: |
Motorized Rotation |
Seam Welding: |
Seam Tracker / Monitor |
Feature: |
Joint Welding Rollers/Welding Positioner |
Other Name: |
Welding Manipulator |
Warranty: |
1 Year |
Name: |
Welding Column And Boom |
Lifting Travel: |
2000mm |
Shrink Travel: |
2000mm |
Rotation Way: |
Motorized Rotation |
Seam Welding: |
Seam Tracker / Monitor |
Feature: |
Joint Welding Rollers/Welding Positioner |
Other Name: |
Welding Manipulator |
Warranty: |
1 Year |

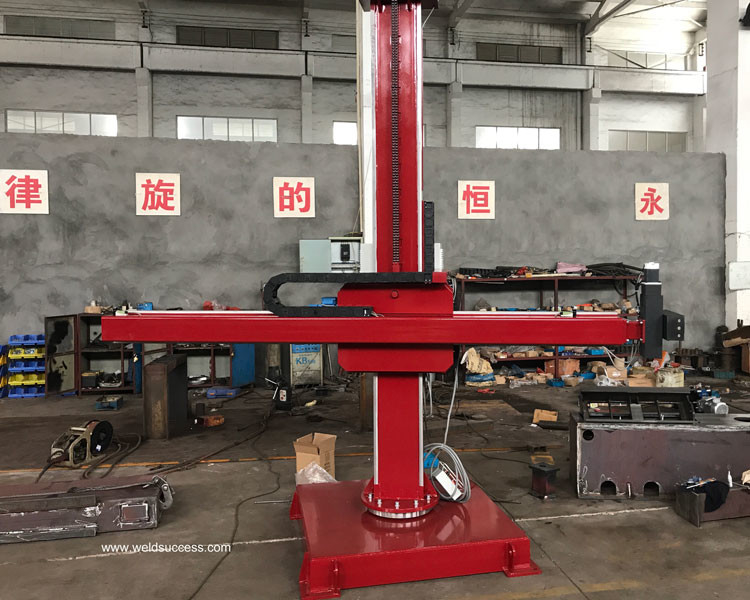

Welding Column and Boom is a versatile and efficient welding device that is used for industrial and commercial welding purposes. It is designed to be used in a variety of environments and offers superior performance. This welding device is composed of a welding column, a boom, and installation hardware. The welding column is made from a high-quality steel material that is capable of withstanding high temperatures and pressure. It is also equipped with a reliable and efficient motor that ensures smooth operation. The welding column is equipped with a variety of components, including welding arms, torches, and clamps, for a complete welding solution. The boom is made from a durable material and is capable of supporting heavy welding jobs. It is also equipped with a reliable and efficient motor and can be easily adjusted to meet the needs of different welding jobs. The installation hardware is designed to ensure a secure and safe installation and can be customized according to the requirements of the job. All components of this welding system have been tested and certified to meet the highest standards and come with a one-year warranty. The Welding Column and Boom are CE certified for safety and quality assurance.
| Model | LHC-2020 |
|---|---|
|
Boom end load capacity |
250KG |
|
Boom vertical travel distance |
2000 mm Maximum |
|
Boom vertical travel speed |
1000 mm/min |
|
Horizontal boom travel distance |
2000 mm Maximum |
|
Horizontal boom travel speed |
120-1200 mm/min |
|
Rotation angle |
360° |
|
Rotation way |
Manual or Motorized all available |
|
Traveling way |
Fixed,Manual or Motorized all available |
|
Traveling speed |
2000 mm/min |
|
Voltage |
380V~480V 50/60Hz 3Phase |
|
Certificates |
CE |
|
Warranty |
One Year |
|
Color |
RAL 3003 & RAL 9005 |
Weldsuccess Welding Column and Boom is a series of welding tools that provide high quality welding performance. It features a welding column structure and welding boom mechanism, offering stability and reliability for welding operations.
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all available.
3. Movable model is available.
For international business, Weldsuccess use all the famous spare parts brand to ensure the welding column boom with long time using life. Even the spare parts broken after years later, the end user also can replace the spare parts easily at the local market.
1.Our column boom Inverter is from Danfoss / Yaskawa.
2.Our pipe manipulator welding Motor is from Invertek.
3.Our boom welder Reducer is from China brand.
4.Our welding machine Electric system is from Schneider.
We offer technical support and service for our welding column and boom products. Our service includes a wide range of activities, ranging from providing technical advice on product selection and installation to troubleshooting and repair services.
We provide comprehensive training on the operation and maintenance of our welding column and boom products. This includes on-site instruction, maintenance tips, and troubleshooting advice to ensure the optimal performance of our products.
We also offer extended warranty coverage for our welding column and boom products. This includes extended coverage for parts and labor, as well as replacement of defective parts.
If you need assistance with any of our welding column and boom products, please do not hesitate to contact us. Our customer service team is available to help you with any questions or concerns you may have.
The welding column and boom is packaged in an industrial-strength cardboard box, with foam inserts to protect it from damage during shipping. The box is sealed with plastic wrap and labeled with the product name, serial number and shipping address.
The welding column and boom is shipped by truck or air freight, depending on the destination. We work with reliable carriers to ensure safe and timely delivery.
