Automatic Column Boom Welding Manipulator Joint Welding Rotator For Seam Welding

Product Details

Place of Origin: China

Brand Name: SKSS

Certification: ISO / CE / CO

Model Number: LHC 5050

Payment & Shipping Terms

Minimum Order Quantity: 1 sets

Price: Negotiation

Packaging Details: Wooden case / Container

Delivery Time: 25 Days

Payment Terms: T/T, L/C, D/P, D/A

Supply Ability: 3 Sets Per Month

Get Best Price
Highlight:

column and boom welding machine

,

automatic pipe welder

Name:
Welding Manipulator
Type:
Column And Boom
Tank Diameter:
5000 Mm
Tank Length:
5000 Mm
Option:
Flux Recovery Machine
Welding Way:
SAW
Ussage:
Welding With Welding Rotator
Application:
Seam Welding
Name:
Welding Manipulator
Type:
Column And Boom
Tank Diameter:
5000 Mm
Tank Length:
5000 Mm
Option:
Flux Recovery Machine
Welding Way:
SAW
Ussage:
Welding With Welding Rotator
Application:
Seam Welding

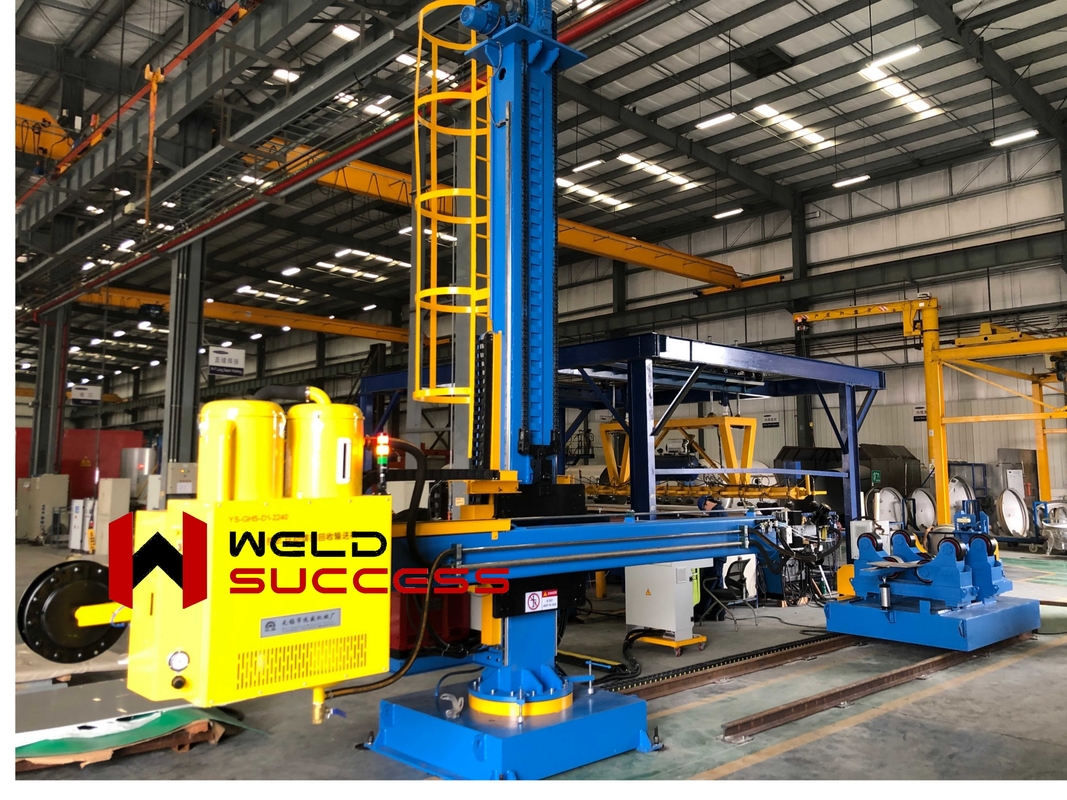

Automatic Column Boom Welding Manipulator Joint Welding Rotator For Seam Welding

Automatic Column Boom Welding Machine  With Flux Recovery Machine Welding Rotator

WELDSUCCESS PRODUCTS.pdf



Brife info

1. Tank range : 5000mm diameter Maximum.

2. Voltage : 380V to European,415V to AUS, 480V to USA are all available.

3. Motorized moving and rotation.

4. Flux Recovery Mahcine / Seam Tracker / Welding Seam Monitor

5. Working with the welding rotator together to relize fully auto welding.



Description

1. There three type of structures: fixed, fixed with rotation, and movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to welding gun
4. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower and other lines



Specifications

Model

LHC-4040

LHC-5050

LHC-6060

LHC-8080

Effective Vertical Lifting Stroke of Boom (mm)

4000

5000

6000

8000

Effective Horizontal Retracting Stroke of Boom (mm)

4000

5000

6000

8000

Boom Lifting speed (mm/min)

1

Boom Retracting speed (mm/min)

0.12-1.2

Column Rotation Angle (°)

□  Stationary             □  ±180°

Column Rotation Way (rpm)

□ Stationary    □ Manual    □ Motorized(0.1)

Trolley Traveling Way (mm/min)

   □ Stationary    □ Manual    □ Motorized(1.5/3)

Option :

 □ Seam Tracker     □ Flux recovery machine

   Welding Source  □ Chinese   □ Lincoln Brand



Applications

1. To weld the inner seam and outside seam automatically.

2. Auto Flux recovery machine / seam teacker / monitor are all available.

3. Movable model is available.



Advantages

1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.



More Details

1. There is safe ladder behind the column for maintenance of equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

5. Sand blasting treatment to main welding parts before painting


Installation

1. Normally all the equipments will disassemble and packaged in Container.

2. We will supply you all the detail installation drawings for your reference.

3. Our engineers also supply door to door installation service.
