Product Details
Place of Origin: China
Brand Name: SKSS
Certification: ISO / CE / CO
Model Number: LHC 5080
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Size: |
5X8 Meters |
Name: |
Welding Column And Boom |
Option: |
Flux Recovery Machine / Seam Tracker |
Welding Way: |
SAW / TIG |
Type: |
Welding Manipulator |
Welding Source: |
All Available |
Moving And Rotation: |
Motorized |
Size: |
5X8 Meters |
Name: |
Welding Column And Boom |
Option: |
Flux Recovery Machine / Seam Tracker |
Welding Way: |
SAW / TIG |
Type: |
Welding Manipulator |
Welding Source: |
All Available |
Moving And Rotation: |
Motorized |

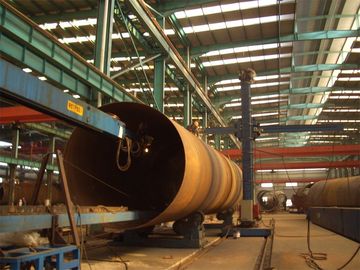

5X8 Meters Welding Column And Boom ,Welding Manipulator
Brife info
For 5000 mm diameter , 8000 mm length tank seam welding.
1. Tank range : 40 - 150 inches.
2. Voltage : 110V - 600 V
3. Motorized moving and rotation.
4. Flux Recovery Mahcine / Seam Tracker / Welding Seam Monitor
5. Working with the welding rotator together to relize fully auto welding.
Specifications
|
Model |
LHC-4040 |
LHC-5050 |
LHC-6060 |
LHC-8080 |
|
Effective Vertical Lifting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Effective Horizontal Retracting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Boom Lifting speed (mm/min) |
1 |
|||
|
Boom Retracting speed (mm/min) |
0.12-1.2 |
|||
|
Column Rotation Angle (°) |
□ Stationary □ ±180° |
|||
|
Column Rotation Way (rpm) |
□ Stationary □ Manual □ Motorized(0.1) |
|||
|
Trolley Traveling Way (mm/min) |
□ Stationary □ Manual □ Motorized(1.5/3) |
|||
|
Option : |
□ Seam Tracker □ Flux recovery machine |
|||
|
Welding Source □ Chinese □ Lincoln Brand |
||||
Description
1. There three type of structures: fixed, fixed with rotation, and movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to welding gun
4. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower and other lines
Applications
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine / seam teacker / monitor are all available.
3. Movable model is available.
Advantages
1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.
More Details
1. There is safe ladder behind the column for maintenance of equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands
5. Sand blasting treatment to main welding parts before painting
Installation
1. Normally all the equipments will disassemble and packaged in Container.
2. We will supply you all the detail installation drawings for your reference.
3. Our engineers also supply door to door installation service.
