Product Details
Place of Origin: China
Brand Name: SKSS
Certification: ISO / CE / CO
Model Number: LHC 6060
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 sets per month
Voltage: |
380V 60Hz 3P(Saudi Arabia) |
Type: |
Motorized Moving And Rotation |
Option: |
Flux Recovery Machine |
Tank Diameter: |
6000 Mm |
Tank Length: |
6000 Mm |
Customs Clearance Documents: |
Original Invoice / CO |
Voltage: |
380V 60Hz 3P(Saudi Arabia) |
Type: |
Motorized Moving And Rotation |
Option: |
Flux Recovery Machine |
Tank Diameter: |
6000 Mm |
Tank Length: |
6000 Mm |
Customs Clearance Documents: |
Original Invoice / CO |

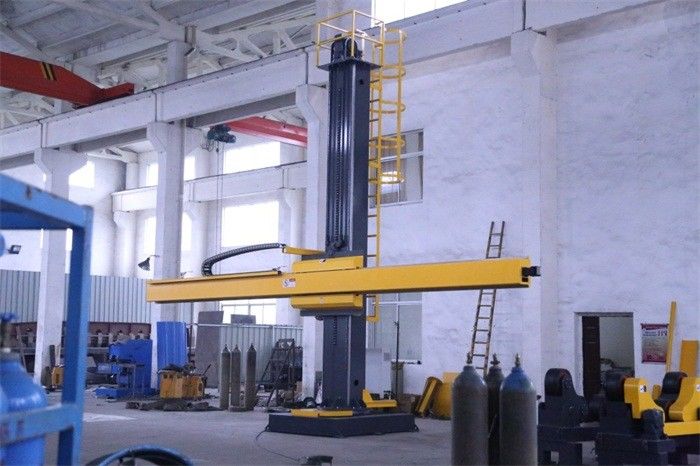

1. Automatic welding manipulator can be adopted with various welding power (Chinese or Import brand).
2. Stretching of cross boom adapts AC frequency converter stepless speed control to ensure work steady.
3. Head equipped with electric cross slides, can adjust position of welding .
4. Chain break-resistant and anti-slip device in boom to guarantee safety. .
5. Braking device can ensure column work in safe environment.
6. Customized manipulator requirements are accepted.
7. Automatic flux feeding, recovering devices, wire feeder device, working platform and chair ( Optional ).
Specifications
|
Model |
LHC-4040 |
LHC-5050 |
LHC-6060 |
LHC-8080 |
|
Effective Vertical Lifting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Effective Horizontal Retracting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Boom Lifting speed (mm/min) |
1 |
|||
|
Boom Retracting speed (mm/min) |
0.12-1.2 |
|||
|
Column Rotation Angle (°) |
□ Stationary □ ±180° |
|||
|
Column Rotation Way (rpm) |
□ Stationary □ Manual □ Motorized(0.1) |
|||
|
Trolley Traveling Way (mm/min) |
□ Stationary □ Manual □ Motorized(1.5/3) |
|||
|
Option : |
□ Seam Tracker □ Flux recovery machine |
|||
|
Welding Source □ Chinese □ Lincoln Brand |
||||
Applications
1. To weld the inner seam and outside seam automatically.
2. Auto Flux recovery machine.
Advantages
1. We are welding equipment MANUFACTURER, so we can offer better price and after sale service and
shorter delivery date.
2. We have strong design & technical capacity, we can design and manufacture as per the customer's
requirement.
3. All of our equipments got the CE certificates and ISO certificates.For Saudi Arabia customer, they also need Original Invoice and Certificate of Original for customs clearance. Of course, we can supply all of these document for you.
