Product Details
Place of Origin: China
Brand Name: SKSS
Certification: ISO / CE / CO
Model Number: HGZ - 60
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: 30% Payment in advance via T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Max Capacity: |
60 T = 120000lbs |
Tank Diameter: |
750 - 4800 Mm |
Control Way: |
Wireless Control / Remote Control Box |
Moving Way: |
Motorized Moving |
Application: |
After Spot Welding Then Auto Welding |
Market: |
Iran / Pipe Welding Rollers |
Name: |
Welding Rollers |
Type: |
Welding Rollers Stands |
Used For: |
Pressure Vessels / Tanks / Boilers Turning Welding |
Max Capacity: |
60 T = 120000lbs |
Tank Diameter: |
750 - 4800 Mm |
Control Way: |
Wireless Control / Remote Control Box |
Moving Way: |
Motorized Moving |
Application: |
After Spot Welding Then Auto Welding |
Market: |
Iran / Pipe Welding Rollers |
Name: |
Welding Rollers |
Type: |
Welding Rollers Stands |
Used For: |
Pressure Vessels / Tanks / Boilers Turning Welding |

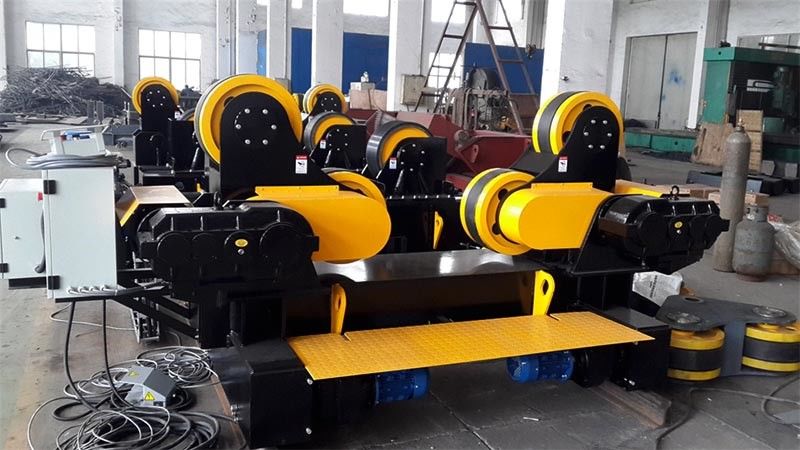

60T Movable Welding Rollers Stands For Pressure Vessels / Tanks / Boilers Turning Welding
Attention More
1. Movable rotators can auto move on the rails for the third single pipe butt welding.
2. It will be controled by Hand Remote Control Box or Wireless Control Box.
3. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
4. All our pipe welding rotators have 20% over weight design, but we suggest used on the safety rangs.
5. We have strong delivery team, including the Sea freight and Air transportation. Door to door available.
6. Just advise me your desitination port then we will give you the final CIF price.
Supply Ranges
1. Consist : One powered roller , One idler roller , Electric control system
2. Adjust way : Adjust the pipe diameter automatically with diameter 750 - 4800 mm
3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available
4. Control Way : Remote hand control box / Wireless hand control box
5. Roller Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )
6. Original : Our factory / Wuxi Success Machinery Equipment Co Ltd / Pipe welding rollers
Specification
|
Model |
HGZ-60 |
HGZ-80 |
HGZ-100 |
HGZ-150 |
HGZ-200 |
|
Max Capacity |
60 T |
80 T |
100 T |
150 T |
200 T |
|
Roller Diameter (mm) |
450 |
500 |
550 |
550 |
550 |
|
Roller Width (mm) |
120 |
||||
|
Working Range (mm) |
750-4800 |
850-5000 |
1000-5500 |
1200-6500 |
1500-8000 |
|
Roller Speed (m/h) |
1 - 1000 mm/min |
||||
|
Motor Power (kw) |
4 |
4 |
5.5 |
5.5 |
7.5 |
|
Option : |
□ Moving wheels □ Wireless Control □ Remote Control |
||||
Applications
1. For pipe support and turning for auto seam welding.
2. To make wind tower.
3. For auto circle seam welding.
More Questions Customers May Concerned
Q : What about the transportion?
A : 1. Fully packaged in wooden case to anti damage during the transportational process .
2. Usually we take seaway ,cause its more convenient and cheaper for big machine.
3. Door to door delivery service is also available.
Q : What is your warranty and after sale service ?
A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.
2. If you have any questions on the installation , you will get our engineers respond within 24 hours.
Details Control system and Brand
1. Inverter is from Taida / Yaskawa Brand
2. Motor is from CE Invertek Brand
3. Reducer is from Cable. Made in China.
4. Electric system is from Schneider
Our suggestion
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
DO NOT HESITATE ! JUST SEND US YOUR INQUIRY NOW.
