Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers

Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers
Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers

Large Image :  Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: HGZ - 60
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden Case
Delivery Time: 15 Days
Payment Terms: 30% Payment in advance via T/T, L/C, D/P
Supply Ability: 5 Sets Per Month
Detailed Product Description
Max Capacity: 60 T = 120000lbs Tank Diameter: 750 - 4800 Mm
Control Way: Wireless Control / Remote Control Box Moving Way: Motorized Moving
Application: After Spot Welding Then Auto Welding Equipment: Pipe Welding Rollers
High Light:

pipe rotator welding

,

self aligning rotator



Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers



Attention

1. Movable pipe welding rollers can auto move on the rails for the third single pipe butt welding.

2. It will be controled by Hand Remote Control Box or Wireless Control Box.

3. During two single pipes butting , the position could not butt well sometimes , our rotators can adjust the

    butt position up or down / left or right to realize the perfect butt position.



Supply Ranges

1. Pipe welding rollers consist : One powered roller , One idler roller , Electric control system

2. Adjust way : Adjust the pipe diameter automatically with diameter 750 - 4800 mm

3. Voltage : 110V - 600 V 50 / 60 Hz 1P / 3P all available

4. Control Way : Remote hand control box / Wireless hand control box

5. Pipe welding rollers wheel Material : Rubber / Steel / PU ( Polyurethane roller for Nonferrous Metals )

6. Original : Our factory / Wuxi China



Specification of pipe welding rollers

Model

HGZ-60

HGZ-80

HGZ-100

HGZ-150

HGZ-200

Max Capacity

60 T

80 T

100 T

150 T

200 T

Roller Diameter (mm)

 450

 500

 550

 550

 550

Roller Width (mm)

 120

Working Range (mm)

750-4800

850-5000

1000-5500

1200-6500

1500-8000

Roller Speed (m/h)

1 - 1000 mm/min

Motor Power (kw)

4

4

5.5

5.5

7.5

Option :

□ Moving wheels       □ Wireless Control      □ Remote Control


Pipe Welding Rollers Widely Applications

1. For pipe support and turning for auto seam welding

2. To make wind tower

3. For auto circle seam welding

4. Controlled by foot pedal / hand control box

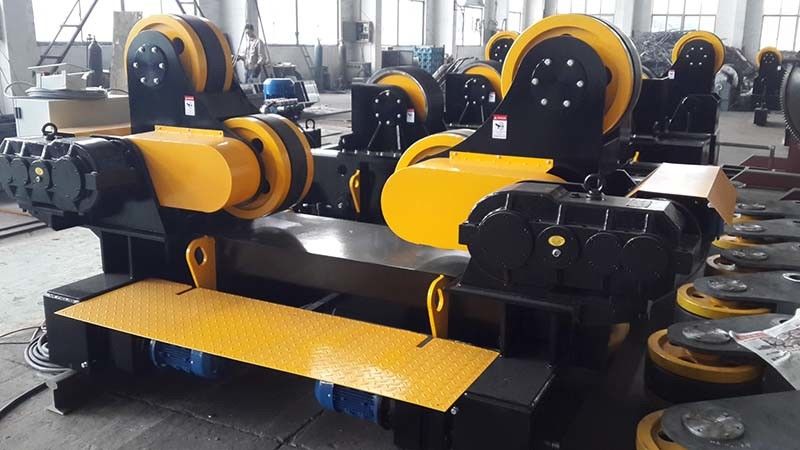

Motorized Moving Pipe Welding Rollers , 120000lbs Heavy Duty Pipe Rollers 0



More Questions Customers May Concerned On Our Pipe Welding Rollers

Q : What about the transportion?

A : 1. Fully packaged in wooden case to anti damage during the transportational process .

     2. Usually we take seaway ,cause its more convenient and cheaper for big machine.

     3. Door to door delivery service is also available.



Q : What is your warranty and after sale service ?

A : 1. All our equipments with One Year Warranty time , fully test at our work shop before delivery.

     2. If you have any questions on the installation , you will get our engineers respond within 24 hours.



Details Control system and Brand On Pipe Welding Rollers

1. Inverter is from Taida / Yaskawa Brand

2. Motor is from CE Invertek Brand

3. Reducer is from Cable. Made in China.

4. Electric system is from Schneider



Our Suggestion

1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning Pipe welding rollers / Bolt adjsutment / Lead Screw adjustment / Fit up welding rotators all available.
