|Max Capacity:||20 T||Adjust Way:||Conventional Bolt Adjustment|
|Motor Power:||2 * 1.1 KW||Control Way:||Hand Control Box|
|Name:||Pipe Welding Rotator||Turning Speed:||0 - 1000 Mm/min|
pipe rotator welding,
self aligning rotator

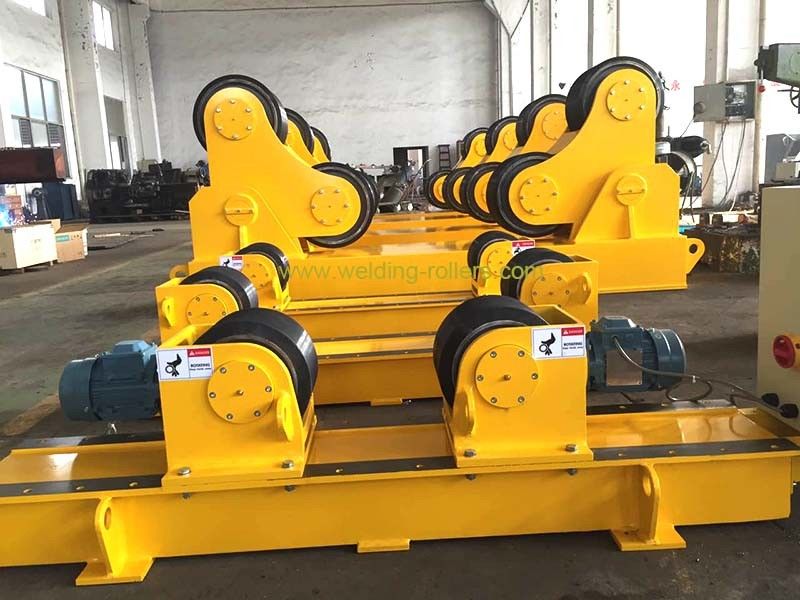

Conventional Pipe Welding Rotator Self Aligning with Digital Turning Speed Display
More products pics.pdf
Pipe Welding Rotator Description
1. Pipe welding rotator package : One powered roller / one idler roller / Electric Control System
2. Voltage : 110V - 600V 50 / 60 Hz 1P / 3P
3. Digital Turning Speed Display / 1 - 1000 mm / min adjustable.
4. Pipe welding rotator roller : Rubber / Steel / PU (Polyurethane)
5. Original : Our Factory , Wuxi China
6. Condition : New / Fully CE supported
1. The powered drive unit drives all wheels synchronized using the AC gear motors via the latest inverter control.
2. A hand held low voltage control pendant on a 10-meter cable provides the operator with full control of the rotator including a potentiometer for varying the speed, forward / reverse and stop.
3. All our rotators are grit blasted to SA 2.5 for all structural steel and polyurethane paintwork ensuring that your investment provides you with many years of reliable, trouble-free use.
4. The idler roll has the same dimensions to match the powered drive unit.
Pipe Welding Rotator Details Using Specification
HGK - 5
HGK - 10
HGK - 20
HGK - 30
HGK - 40
Roller Diameter (mm)
Roller Width (mm)
Working Range (mm)
Roller Speed (mm/min)
1 - 1000
Motor Power (kw)
2 * 0.37
2 * 0.55
2 * 1.1
2 * 1.5
2 * 1.5
□ Bolt Adjustment □ Lead Screw Adjustment
Other types option
1. Our range of pipe welding rotators / tank turning rolls offer the most comprehensive range of any manufacturer all available for sale.
2. Model includes pipe rotators from 1 tonne up to 10 tonnes, heavier duty welding rotators up to 1000 tonnes capable of rotating vessels up to 10 metres in diameter.
3. Whether you require the need to position and weld a small pipe section, flange or elbow, a large pressure vessel or a complex windtower or double jointing line,we have the solution to rotate and position your workpiece to maximise your production efficiency and guarantee to solve your welding and handling requirements.
4. To best advise you on the options available email us to discuss your project with our experienced engineering team. They will advise on the welding rotators / tank turning rolls best suited for your application and offer a cost effective sale to provide maximum flexibility.
Pipe Welding Rotator Details Parts Brand
1. Danfoss / Yaskawa inverter
2. ABB / Invertek motor
3. Cable / Shuntian Reducer
4. Schneider / Siemens electric system
Pipe Welding Rotator / Tank Turning Rolls Transportation
1. Seaway is the most common transportation way for oversea trading.
2. Depends on your location, combined transport by rail and sea is also an option.
3. Certainly railway transportation is also acceptable if it is the most suitable approach.
After Sale Service For Pipe Welding Rotator
1. We provide 12month guaranty period for the whole machine quality.
2. During this time, any issue proved because of the machine flaw itself,we would take the whole responsibility of it.
3. Except of the guaranty period,technical advisory support is available freely covering the whole using life of the machine.
4. Engineer service on user premises is also available for necessary.
1. Normally under 60 T model we use the Rubber material rollers , upper we use Steel material rollers.
2. If your work piece material is Nonferrous Metals , we suggest PU rollers.
3. Self-aligning pipe welding rotator / Bolt adjsutment / Lead Screw adjustment / Fit up rotators all available.
4. If your single pipe length more then 8M , then you should use 1 powered with 2 idlers to support.
Installation For Pipe Welding Rotator
1. Normally the pipe welding rotators shipped with fully installation.
2. Pipe welding rotator is easy to installate via our detail drawings supported.
3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.
Welding rotators – ‘what you want, when you need it’.
PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
