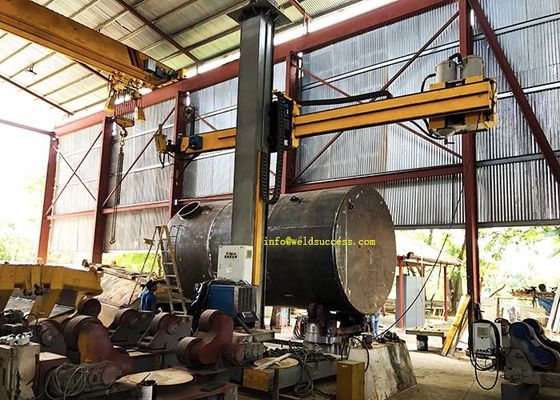

LHC3030 Motorized Travelling ±180° Flux Recovery Machine

LHC3030 Motorized Travelling ±180° Flux Recovery Machine
LHC3030 Motorized Travelling ±180° Flux Recovery Machine

Large Image :  LHC3030 Motorized Travelling ±180° Flux Recovery Machine

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 3030
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Contact Now
Detailed Product Description
Lifting Stroke: 3000mm Retracting Stroke: 3000 Mm
Type: Welding Cloumn And Boom Options: Flux Recovery Machine
Certificate: CE Name: Welding Manipulator
Turn Around: ±180° Travelling Way: Motorized Travelling
Export: Panama
High Light:

3000mm welding manipulators

,

ISO flux recovery machine

,

3000mm flux recovery machine

LHC3040 Welding Column And Boom, Welding Manipulator Motorized Travelling ±180°,Flux Recovery Machine



Welding Column And Boom More Detail



Model: LHC-3X3

  • Inside, outside,longitudinal & circumferential welding applications.
  • With motorized cross slides to adjust the welding gun position.
  • Options for seam tracker,monitor & flux recovery machine.
  • SAW,MIG welding head are all available.
  • Using together with pipe turning rolls.
  • Top-class electronic components from Schneider.
  • 100% new from original manufacturer
  • CE marking

LHC3030 Welding Column And Boom Manipulator Spacification

Model LHC-3X3
Boom end max. load 200 kg
Vertical boom travel 3000 mm
Vertical boom travel speed 1000mm/min
Vertical travel motor 0.75 kw with brake
Horizontal boom travel 3000mm
Horizontal boom travel speed 120~1200mm/min
Horizontal travel motor 0.37 kw
Rotation angle ±180°
Rotation way Manual / Motorized
Traveling speed Manual / Motorized
Traveling way Manual / Motorized
Control way Remote hand control
Input Voltage 110V ~ 575V Single/3 Phase 50/60Hz
Certificate CE approval



Spare parts brand

  • Inverter is from Danfoss
  • Motor is from Invertek
  • Reducer is from China brand
  • Electric system is from Schneider



Welding Column And Boom Production Details

1. There is safe ladder behind the column for maintenance of equipment
2. Limit switch for both boom travel and column
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

5. Sand blasting treatment to main welding parts before painting.



Welding Column And Boom Applications

  • 1. To weld the inner seam and outside seam automatically.
  • 2. Auto Flux recovery machine / seam teacker / monitor are all available.
  • 3. Movable model is available.



Welding Column And Boom Advantages

1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.


LHC3030 Motorized Travelling ±180° Flux Recovery Machine 0

LHC3030 Motorized Travelling ±180° Flux Recovery Machine 1

LHC3030 Motorized Travelling ±180° Flux Recovery Machine 2
