Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator

Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator
Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator

Large Image :  Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator

Product Details:
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 4050
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Detailed Product Description
Name: Welding Column And Boom Option: Seam Tracker / Flux Recovery Machine
Tank Diameter: 4000 Mm Tank Length: 5000 Mm
Control System: Remote / Wireless Certificate: CE
Voltage: 380V 50Hz 3P
High Light:

column and boom welding machine

,

automatic pipe welder

Motorized Moving Rotation Circular Welding Machine , Seam Tracker Welding Column and Boom Manipulator



Welding Column And Boom Description

1. There three type of structures: fixed, fixed with rotation, and movable with rotation
2. ±180° degree column rotation with manual locking at any position
3. Motorized cross slider 100*100mm fine adjustment stroke to welding gun
4. It can realize automatic welding incorporate with SAW, MAG and TIG welding systems
5. Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower and other lines

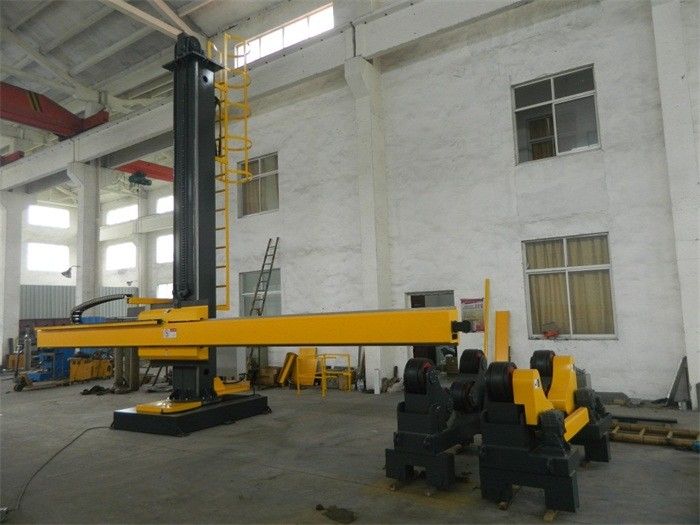

Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator  0



Welding Column And Boom Specifications

Model

LHC-4040

LHC-5050

LHC-6060

LHC-8080

Effective Vertical Lifting Stroke of Boom (mm)

4000

5000

6000

8000

Effective Horizontal Retracting Stroke of Boom (mm)

4000

5000

6000

8000

Boom Lifting speed (mm/min)

1

Boom Retracting speed (mm/min)

0.12-1.2

Column Rotation Angle (°)

□  Stationary             □  ±180°

Column Rotation Way (rpm)

□ Stationary    □ Manual    □ Motorized(0.1)

Trolley Traveling Way (mm/min)

   □ Stationary    □ Manual    □ Motorized(1.5/3)

Option :

 □ Seam Tracker     □ Flux recovery machine

   Welding Source  □ Chinese   □ Lincoln Brand



Welding Column And Boom Applications

1. To weld the inner seam and outside seam automatically.

2. Auto Flux recovery machine / seam teacker / monitor are all available.



Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator  1



Welding Column And Boom Advantages

1. ISO9000 & CE certification supported
2. Professional and experienced engineer team to ensure the advanced design of structure and electric
3. Optimum materials and outsourcings to ensure the best performance
4. Commissioning and testing before delivery
5. You are welcome to visit our factory for inspection at work shop.



Welding Column And Boom More Details

1. There is safe ladder behind the column for maintenance of equipment
2. Limit switch for both boom travel and lift
3. All motion parts have lubrication system
4. Main electric elements are ABB / Siemens brands

5. Sand blasting treatment to main welding parts before painting


Motorized Moving Rotation Circular Welding Machine , Seam Tracker Column and Boom Manipulator  2
