Product Details
Place of Origin: China
Brand Name: Weldsuccess
Certification: ISO / CE / CO
Model Number: LHC 4040
Payment & Shipping Terms
Minimum Order Quantity: 1 sets
Price: Negotiation
Packaging Details: Wooden case / Container
Delivery Time: 25 Days
Payment Terms: T/T, L/C, D/P, D/A
Supply Ability: 3 Sets Per Month
Name: |
Welding Column And Boom |
Tank Diameter: |
4000 Mm |
Tank Length: |
4000 Mm |
Delivery Time: |
25 Days |
Option: |
Flux Recovery Machine / Seam Tracker |
Welding Way: |
SAW / TIG |
Voltage: |
110 V - 600 V |
Other Name: |
Welding Manipulator |
Name: |
Welding Column And Boom |
Tank Diameter: |
4000 Mm |
Tank Length: |
4000 Mm |
Delivery Time: |
25 Days |
Option: |
Flux Recovery Machine / Seam Tracker |
Welding Way: |
SAW / TIG |
Voltage: |
110 V - 600 V |
Other Name: |
Welding Manipulator |

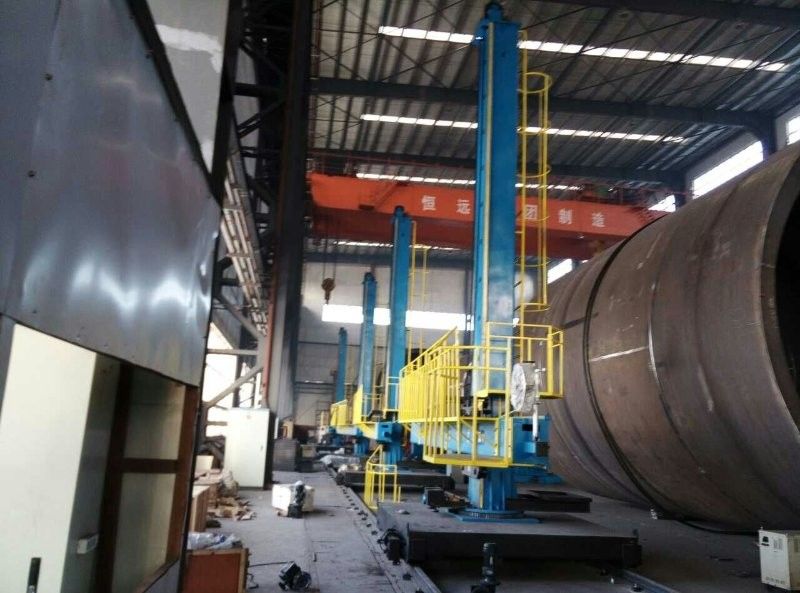

Medium Duty Welding Column And Boom Welding Manipulators With Motorized Moving And Rotation
Welding Column And Boom Description
1. Designed and robustly build to withstand rugged work environments.
2. Smooth ±180° motorized rotation.
3. All vertical and horizontal guidings are precisely machined for smooth movement.
4. Solid state inverter for variable speed of horizontal travel and travel carriage.
5. Boom end capacity 500lbs
Welding Column And Boom Details Parameters
|
Model |
LHC-4040 |
LHC-5050 |
LHC-6060 |
LHC-8080 |
|
Effective Vertical Lifting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Effective Horizontal Retracting Stroke of Boom (mm) |
4000 |
5000 |
6000 |
8000 |
|
Boom Lifting speed (mm/min) |
1 |
|||
|
Boom Retracting speed (mm/min) |
0.12-1.2 |
|||
|
Column Rotation Angle (°) |
□ Stationary □ ±180° |
|||
|
Column Rotation Way (rpm) |
□ Stationary □ Manual □ Motorized(0.1) |
|||
|
Trolley Traveling Way (mm/min) |
□ Stationary □ Manual □ Motorized(1.5/3) |
|||
|
Option : |
□ Seam Tracker □ Flux recovery machine |
|||
|
Welding Source □ Chinese □ Lincoln Brand |
||||
Welding Column And Boom Manipulators Advantages
1. Worm gearbox for vertical travel via AC motor, complete with brake for added safety.
2. High tensile roller chain used for vertical travel with the addition of a counter balance system with the column that provides smooth, effortless travel.
3. Hand control station using low voltage on the generous 10 m (33 ft.) cable.
4. Anti-fall device and limit switches for all motions.
5. Full integration to our positioners or tank turning rolls through PLC is available.
More Details For Welding Column And Boom
1. Any style of welding head including SAW, FCAW,MIG etc. integrated with Lincoln, Miller or Fronius.
2. For all submerged arc processes, flux recovery options available to customer requirement.
3. Fully programmable oscillator, compact/small bore, or regular powered 6″”x6″” cross-slides.
4. Manual or powered track drive.
Installation And Warranty
1. We will send you all the installation docs together with the customs doucs.
2. Our engineer is also supply the door to door installation service if needed.
3. Fully welding column and boom equipments with one year warranty.
